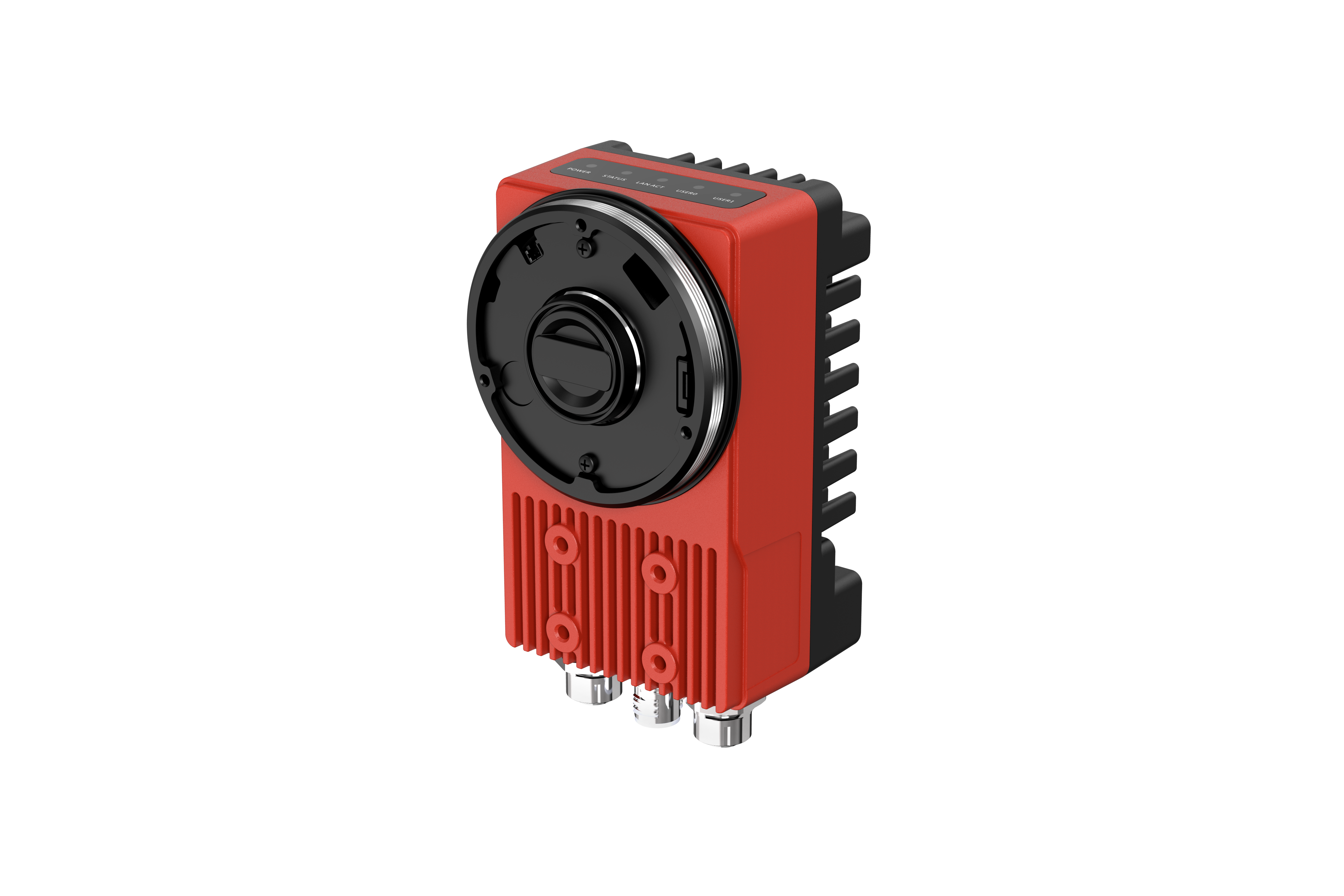

SI5501CG002E

Series	5000 Serial
Model	SI5501CG002E
Resolution	2448 x 2048
Max. Frame rate	35 fps
Sensor Type	2/3″CMOS
Shutter Mode	Global
Pixel Size	3.45 ?m x 3.45 ?m
Mono/Color	Color
Lens Mount	C-MOUNT
Trigger Mode	Software trigger/Hardware trigger/Free run mode
Software	MVP
Certifications	CE?FCC?KC
Function	lD: Code128/Code39/Code93/EAN etc. 2D: QR/DM/Vericode etc.
Connector	3 physical interface: 1 GigE, 1 GPIO, 1 VGA & 1 usB port
Network Port	1Gbps Ethernet
GPIO Interface	12 pins IO interface: 3 input without opto isolation, 3 output without opto isolation
Communication Mode	RS232 or RS485?1Gbps Ethernet
Communication protocol	SDK?Serial?TCPServer?TCPClient?Profinet?Modbus TCP
LED Indicator	5 status indicators: 1 system, 2 network and 2 user configurable indicators
Power Supply	DC24V
Power Consumption	?30W
Product Dimensions	132.2 mm x 69 mm x 62 mm
Packaging Dimensions	190 mm x 179 mm x 127 mm
Net Weight	?600 g
Gross Weight	?800 g
Protection	IP67
Casing Material	Aluminium alloy
Operating Temperature	-20??+50?
Operating Humidity	20%?95%?No condensation
Storage Temperature	-30??+80?

Категория: X86 Series Етикет: Irayple Марка: Irayple

Описание

Embedded Huaray self-developed algorithm platform, with awealth of algorithm tools, can be used for detection, positive and negative detection, positioning guidance, defect detection, size measurement and other scenarios.
Support Win10, support secondary development based on HuaRay
Support VGA/usB interface and extended keyboard/mouse connection
CMOS series product covering 1.3MP~20.0M Presolution
Support Golbal/Rolling shutter
Support software trigger/hardware trigger/free run mode
GigE interface provides maximum 1G bps bandwidth

Connector	3 physical interface: 1 GigE, 1 GPIO, 1 VGA & 1 usB port
Gpio interface	12 pins IO interface: 3 input without opto isolation, 3 output without opto isolation
Lens mount	C-mount
Pixel size	3.45 um x 3.45 um
Power consumption	≤30W
Power supply	DC24V
Resolution	2448 x 2048
Sensor type	2/3"CMOS
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
Mono-color	Color
Max. frame rate	35 fps
Shutter mode	Global
Software	MVP
Certifications	CE，FCC，KC
Function	lD: Code128/Code39/Code93/EAN etc. 2D: QR/DM/Vericode etc.
Network port	1Gbps Ethernet
Communication mode	RS232 or RS485，1Gbps Ethernet
Communication protocol	SDK，Serial，TCPServer，TCPClient，Profinet，Modbus TCP
Led indicator	5 status indicators: 1 system, 2 network and 2 user configurable indicators
Protection	IP67
Casing material	Aluminium alloy
Operating humidity	20%~95%，No condensation
Packaging dimensions	190 mm x 179 mm x 127 mm
Gross weight	＜800 g
