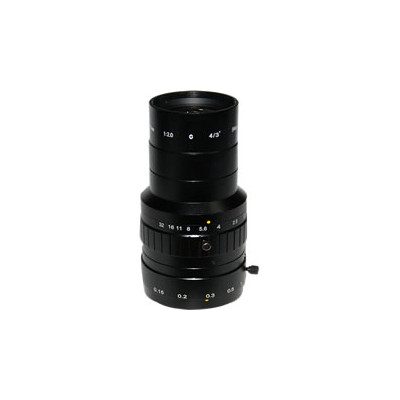

RT-A-2520MX5M

RT-A-2520MX5M

Specification Value
Focal length 25 (mm)
Image circle diameter 22.0 (mm)
Max sensor size 4/3″
4/3″ 48.2 (deg)
Working distance range 0.15 – inf (m)
f/N 2.0 – 32
Back focal length 22.6 (mm)
Distortion on 4/3″ 1.40 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M35.5 x 0.5
Outer diameter 50.0 (mm)
Length 103.4 (mm)
Mass 383 (g)
Add to Quote
Категория: Етикет: Марка:

Описание

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  3. Measured from the front end of the mechanics to the camera flange at infinite focusing.

Допълнителна информация

Lens mount

C
F/n

2.0 – 32
Color
Accessory developer

Opto
Distortion on 4 3

1.40 (%)
Outer diameter

50.0 (mm)
Filter thread

M35.5 x 0.5
Focus control

Manual
Iris control

Manual
Back focal length

22.6 (mm)
Working distance range

0.15 – inf (m)
Focal length

25 (mm)
Length

103.4 (mm)
Image circle diameter

22.0 (mm)
Mass

383 (g)
Operation power source
Focal length (mm)

25 (mm)
Sensor size
