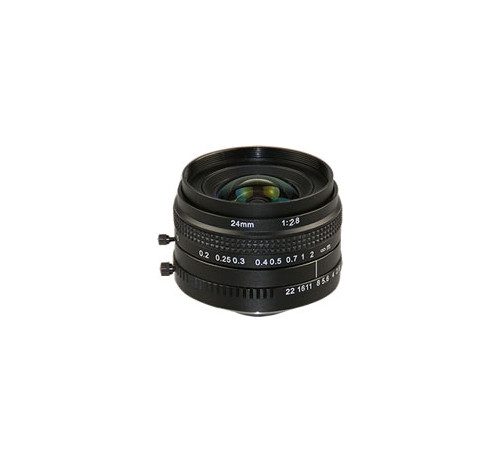

RT-A-2428MF

RT-A-2428MF

Specification Value
Focal length 25 (mm)
Image circle diameter 43 (mm)
Max sensor size 35 mm Full Frame
Full Frame 84.0 (deg)
Working distance range 0.5 – inf (m)
f/N 2.8 – 22
Back focal length 36.0 (mm)
Distortion 4.2 (%)
Iris control Manual
Focus control Manual
Mount F
Filter thread M52 x 0.75
Outer diameter 60.0 (mm)
Length 40.2 (mm)
Mass 230 (g)
Add to Quote
Категория: Етикет: Марка:

Описание

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Percent deviation of the real image compared to an ideal, undistorted image.
  3. Measured from the front end of the mechanics to the camera flange at infinity focus.

Допълнителна информация

Lens mount

F
F/n

2.8 – 22
Operation power source
Accessory developer

Opto
Outer diameter

60.0 (mm)
Filter thread

M52 x 0.75
Focus control

Manual
Iris control

Manual
Back focal length

36.0 (mm)
Focal length

25 (mm)
Working distance range

0.5 – inf (m)
Full frame

84.0 (deg)
Distortion

4.2 (%)
Length

40.2 (mm)
Image circle diameter

43 (mm)
Mass

230 (g)
Color
Focal length (mm)

25 (mm)
Sensor size
