MHR2520M

MHR2520M

Series MH-M Series

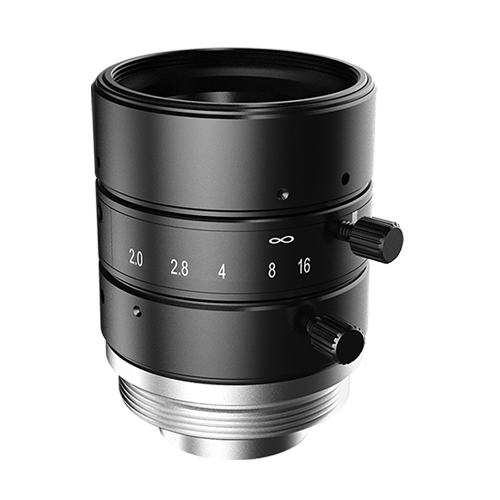

Model MHR2520M
Focal Length 25mm
Aperture F2.0 – F16
Image Sensor Size ?11.4mm(2/3″)
Focus Range 0.18m to infinite
Optical Distortion -0.13%
TV Distortion -0.04%
Field of View 23.9°x18.3°x15.4°(11mmx8.5mmx7.12mm)
Relative Illumination 63% (F2.0);88% (F4.0)
CRA?Chief Ray Angle) 7.5°
Spectral Range 436nm~656nm
Spectral Transmission T>85%
Camera Mount C Mount
Filter Thread M25.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 36.25mmx?29mm
Net Weight 58 g
Operating Temperature -20°C to ~50°C
Add to Quote
Категория: Етикет: Марка:

Описание

  • Support up to 2/3″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 8MP camera in full of view clear and uniform imaging?
  • Large aperture?mainly F2.0?
  • Low distorion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Допълнителна информация

Field of view

23.9°x18.3°x15.4°(11mmx8.5mmx7.12mm)
Focus control

Manual
Cra (chief ray angle)

7.5°
