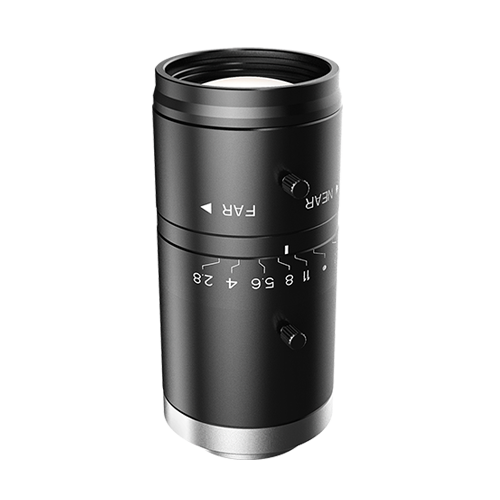

MH7528S

MH7528S

Series MH-S Series
Model MH7528S
Focal Length 75mm
Aperture F2.8 – 22
Image Sensor Size Ф9mm(1/1.8″)
Focus Range 0.5m to infinite
Optical Distortion 0.1%
TV Distortion 0.05%
Field of View 6.84°x5.4°x4.04°(9mmx7.2mmx5.3mm)
Relative Illumination 90% (F2.0); 98% (F4.0)
CRA（Chief Ray Angle) 5°
Spectral Range 420nm~1150nm
Spectral Transmission T>92%
Camera Mount C Mount
Filter Thread M30.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 71.9mmxФ39mm
Net Weight 110 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Категория: Етикет: Марка:

Описание

  • Support up to 1/1.8″ camera sensors
  • 9 models, focal length covering from 4mm to 75mm
  • High resolution for 3MP camera in full of view
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Small size structure suitable for system integration and installation
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Допълнителна информация

Field of view

6.84°x5.4°x4.04°(9mmx7.2mmx5.3mm)
Focus control

Manual
Cra (chief ray angle)

5°
