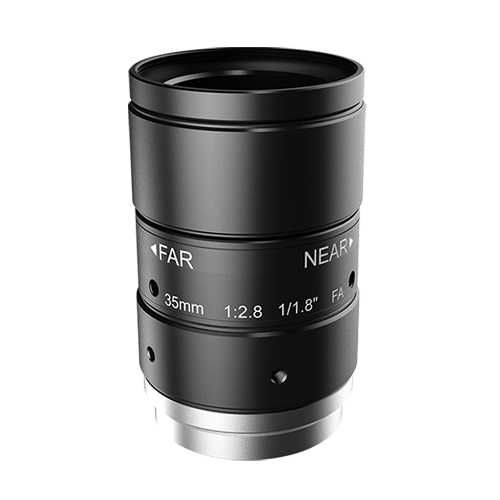

MH3528SP

MH3528SP

Series MH-SP Series
Model MH3528SP
Focal Length 35 mm
Aperture F2.8 – 16
Image Sensor Size Ф9.4 mm(1/1.8″)
Focus Range 0.15 m to infinite
Optical Distortion -0.04%
TV Distortion -0.02%
Field of View 13.8°×11.3°×7.6°(9 mm×7.4 mm×5.3 mm)
Relative Illumination 67% (F2.8);86% (F4.0)
CRA（Chief Ray Angle) 7.4°
Spectral Range 436 nm～656 nm
Spectral Transmission T＞85%
Camera Mount C – Mount
Filter Thread M27×P0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 42.62×Ф29 mm
Net Weight 58.78 g
Operating Temperature -10°C～+50°C
Add to Quote
Категория: Етикет: Марка:

Описание

  • Support up to 1/1.8″ camera sensors
  • 7 models, focal length covering from 6mm to 50mm
  • High resolution for 3MP camera in full of view?high edge definition?
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Ultra low distorion?
  • Stable sharpness quality when temperature varies from -10?~50??

Dimensions

Downloads

Допълнителна информация

Field of view

13.8°x11.3°x7.6°(9 mmx7.4 mmx5.3 mm)
Focus control

Manual
Cra (chief ray angle)

7.4°
