Описание
- Support up to 4/3″ camera sensors
- 6 models, focal length covering from 8.5mm to 50mm
- High resolution for 10MP camera in full of view
- Low distorion?F2.0 large circle?
- Stable sharpness quality when temperature varies from -20?~50??
Dimensions

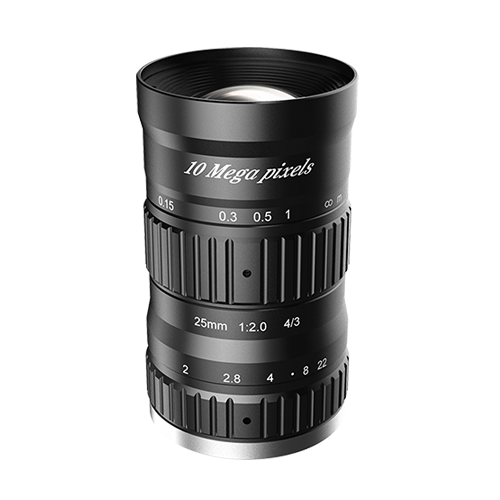

MH2520K
| Series | MH-K Series |
| Model | MH2520K |
| Focal Length | 25mm |
| Aperture | F2.0 – F22 |
| Image Sensor Size | Ф23mm(4/3″) |
| Focus Range | 0.15m to infinite |
| Optical Distortion | -0.66% |
| TV Distortion | -0.25% |
| Field of View | 49.7°x40.6°x31° (4/3″) |
| Relative Illumination | 38% (F2.0); 75% (F4.0) |
| CRA（Chief Ray Angle) | 10.1° |
| Spectral Range | 436nm~656nm |
| Spectral Transmission | T>85% |
| Camera Mount | C Mount |
| Filter Thread | M46xP0.5 |
| Focus Control | Manual |
| Iris Control | Manual |
| Product Dimensions | 82.7mm x Ф47.5mm |
| Net Weight | 251 g |
| Operating Temperature | -20°C to +50°C |
Допълнителна информация
| Field of view | 49.7°x40.6°x31° (4/3") |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 10.1° |
