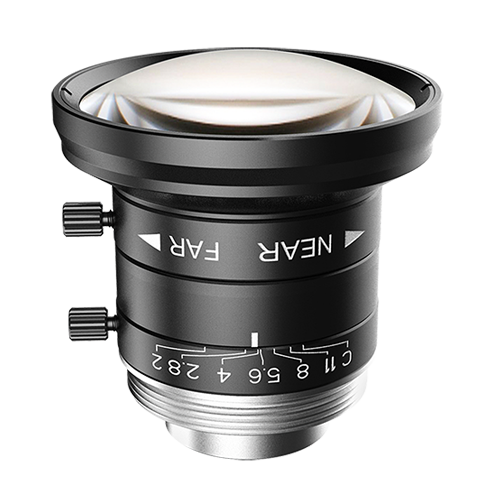

MH0420S

MH0420S

Series MH-S Series
Model MH0420S
Focal Length 4mm
Aperture F2.0 – C
Image Sensor Size Ф9mm(1/1.8″)
Focus Range 0.1m to infinite
Optical Distortion -4.2%
TV Distortion -0.66%
Field of View 94.0°x82.9°x66.5° (9mmx7.2mmx5.3mm)
Relative Illumination 43.3% (F2.0); 69% (F4.0)
CRA（Chief Ray Angle) 12°
Spectral Range 420nm~1150nm
Spectral Transmission T>79%
Camera Mount C Mount
Filter Thread Null
Focus Control Manual
Iris Control Manual
Product Dimensions 30.89mmxФ38.2mm
Net Weight 32 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Категория: Етикет: Марка:

Описание

  • Support up to 1/1.8″ camera sensors
  • 9 models, focal length covering from 4mm to 75mm
  • High resolution for 3MP camera in full of view
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Small size structure suitable for system integration and installation
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Допълнителна информация

Field of view

94.0°x82.9°x66.5° (9mmx7.2mmx5.3mm)
Focus control

Manual
Cra (chief ray angle)

12°
