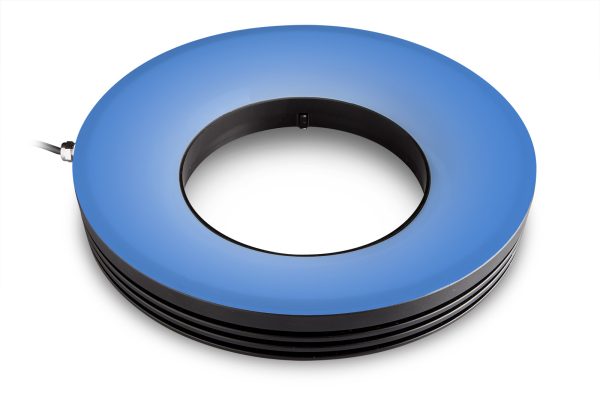

LTRN210B20

Specification	Value
Illumination area outer diameter	195.6 (mm)
Illumination area inner diameter	116.5 (mm)
Emission angle	20 (deg)
Optimal working distance	55-95 (mm)
Number of LED rows	1
Light color, peak wavelength	blue, 470 nm
Illuminance at minimum working distance	10800 (lux)
Illuminance at maximum working distance	9050 (lux)
Supply voltage	24 (V)
Current	630 (mA)
Power consumption	15.2 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1890 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	210.0 (mm)
Inner diameter	116.0 (mm)
Height	40.0 (mm)
Mass	650 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Категория: Ring Lights Етикет: Opto Марка: Opto

Описание

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	blue, 470 nm
Accessory developer	Opto
Lux at max wd	9050 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	40.0 (mm)
Operating temperature	0-45 (°C)
Outer diameter	210.0 (mm)
Color	blue, 470 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	630 (mA)
Mass	650 (g)
Power consumption	15.2 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	195.6 (mm)
Illumination area (inner)	116.5 (mm)
Optimal working distance	55-95 (mm)
Number of led rows	1
Emission angle	20 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	116.0 (mm)
Lux at min wd	10800 (lux)
Max pulse current	1890 (mA)
Operation power source	630 (mA)
