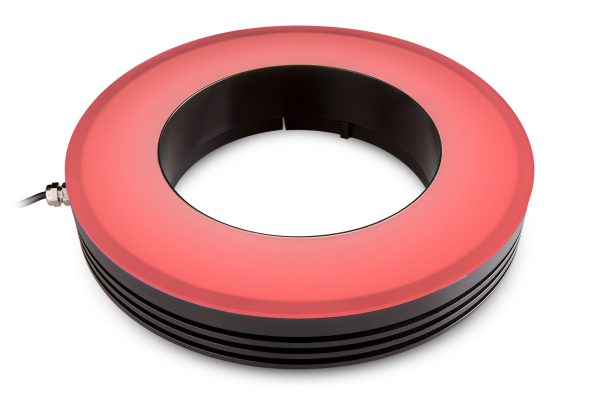

LTRN080RD

Specification	Value
Illumination area outer diameter	178.0 (mm)
Illumination area inner diameter	120.0 (mm)
Emission angle	0 (deg)
Optimal working distance	280-365 (mm)
Number of LED rows	1
Light color, peak wavelength	red, 630 nm
Illuminance at minimum working distance	1300 (lux)
Illuminance at maximum working distance	856 (lux)
Supply voltage	24 (V)
Current	500 (mA)
Power consumption	12.0 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1500 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	192.0 (mm)
Inner diameter	116.0 (mm)
Height	39.6 (mm)
Mass	651 (g)
Operating temperature	0-35 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Категория: Ring Lights Етикет: Opto Марка: Opto

Описание

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	red, 630 nm
Accessory developer	Opto
Lux at max wd	856 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	39.6 (mm)
Operating temperature	0-35 (°C)
Outer diameter	192.0 (mm)
Color	red, 630 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	500 (mA)
Mass	651 (g)
Power consumption	12.0 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	178.0 (mm)
Illumination area (inner)	120.0 (mm)
Optimal working distance	280-365 (mm)
Number of led rows	1
Emission angle	0 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	116.0 (mm)
Lux at min wd	1300 (lux)
Max pulse current	1500 (mA)
Operation power source	500 (mA)
