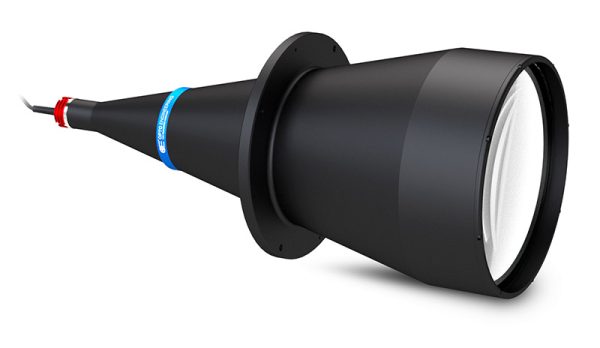

LTCLHP192-W

Specification	Value
Beam diameter	250 (mm)
Working distance range	350 – 700 (mm)
Light color, peak wavelength	white, 6000 K
Spectral FWHM	– (nm)
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED forward voltage typical (max)	2.8 (-) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Length	608.3 (mm)
Front diameter	260.0 (mm)
Mass	9779 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 2

Категория: Telecentric Lights Етикет: Opto Марка: Opto

Описание

Opto Engineering® recommends green light for high precision measurement applications
Tolerance ± 10%
At max forward current. Tolerance is ± 0.06V on forward voltage measurements
In continuous mode (non-pulsed)
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
Nominal value, with no spacers in place

Mass	9779 (g)
Installation	Indoor use only
Max pulse current	2000 (mA)
Accessory developer	Opto
Max led forward current	350 (mA)
Front diameter	260.0 (mm)
Connector	M8
Supply voltage	12-24 (V)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Length	608.3 (mm)
Color	white, 6000 K
Working distance range	350 – 700 (mm)
Max power consumption	2.5 (W)
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 2
Cables	CB244P1500 included
Beam diameter	250 (mm)
Led fwd volt (typ/max)	2.8 (-) (V)
Light color, peak wavelength	white, 6000 K
Operation power source
