Описание
- ± 15%. See datasheet for measurments distance.
- Tolerance ± 2%.
- Constant voltage power supply.
- Constant current power supply.

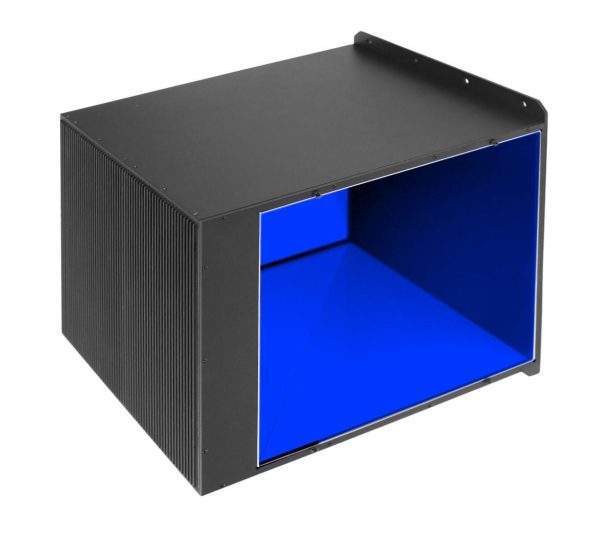

LT3QOG250-00-X-B-24V
| Specification | Value |
|---|---|
| Illumination area width | 250 (mm) |
| Illumination area height | 250 (mm) |
| Optimal working distance | 100-120 (mm) |
| Emission angle | 0 (deg) |
| Light color, peak wavelength | blue, 470 nm |
| Illuminance | 1588 (lux) |
| Supply voltage | 24 (V) |
| Current | 2475 (mA) |
| Power consumption | 59.4 (W) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 10656 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | JST SMR-03V |
| Cable length | 500 (mm) |
| Length | 309.5 (mm) |
| Width | 269.0 (mm) |
| Height | 260.6 (mm) |
| Mass | 5000 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Допълнителна информация
| Cable length | 500 (mm) |
|---|---|
| Color | blue, 470 nm |
| Optmag | |
| Light color, peak wavelength | blue, 470 nm |
| Max pulse current | 10656 (mA) |
| Accessory developer | Opto |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Length | 309.5 (mm) |
| Connector | JST SMR-03V |
| Supply voltage | 24 (V) |
| Height | 260.6 (mm) |
| Width | 269.0 (mm) |
| Operating temperature | 0-45 (°C) |
| Operation power source | 2475 (mA) |
| Risk group (cei 62471) | Exempt |
| Mass | 5000 (g) |
| Operating relative humidity | 20-85, non condensing (%) |
| Lighting area (mm) | 250 (mm) x 250 (mm) |
| Illumination area height | 250 (mm) |
| Illuminance | 1588 (lux) |
| Current | 2475 (mA) |
| Power consumption | 59.4 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Optimal working distance | 100-120 (mm) |
| Emission angle | 0 (deg) |
| Illumination area width | 250 (mm) |
