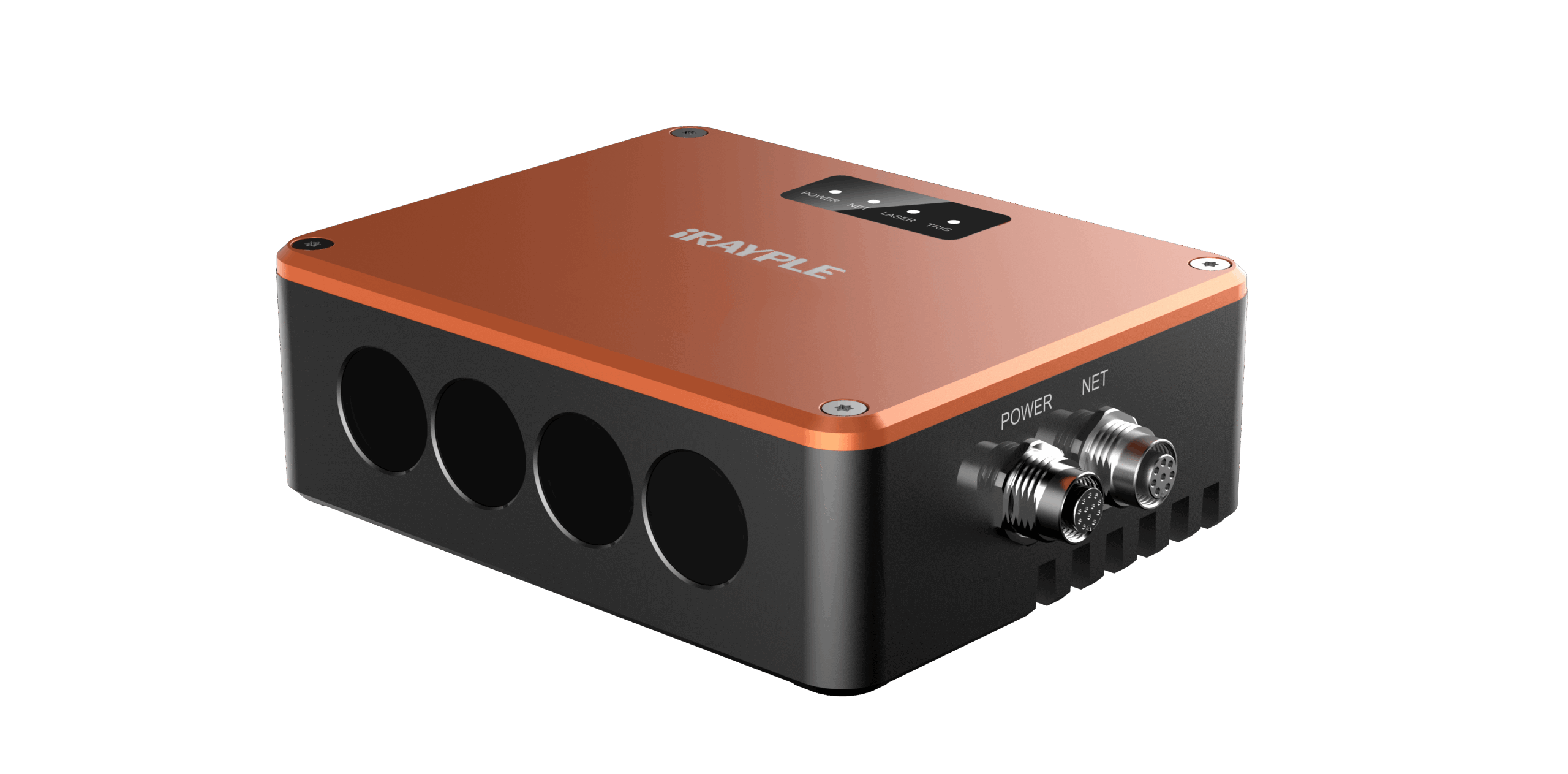

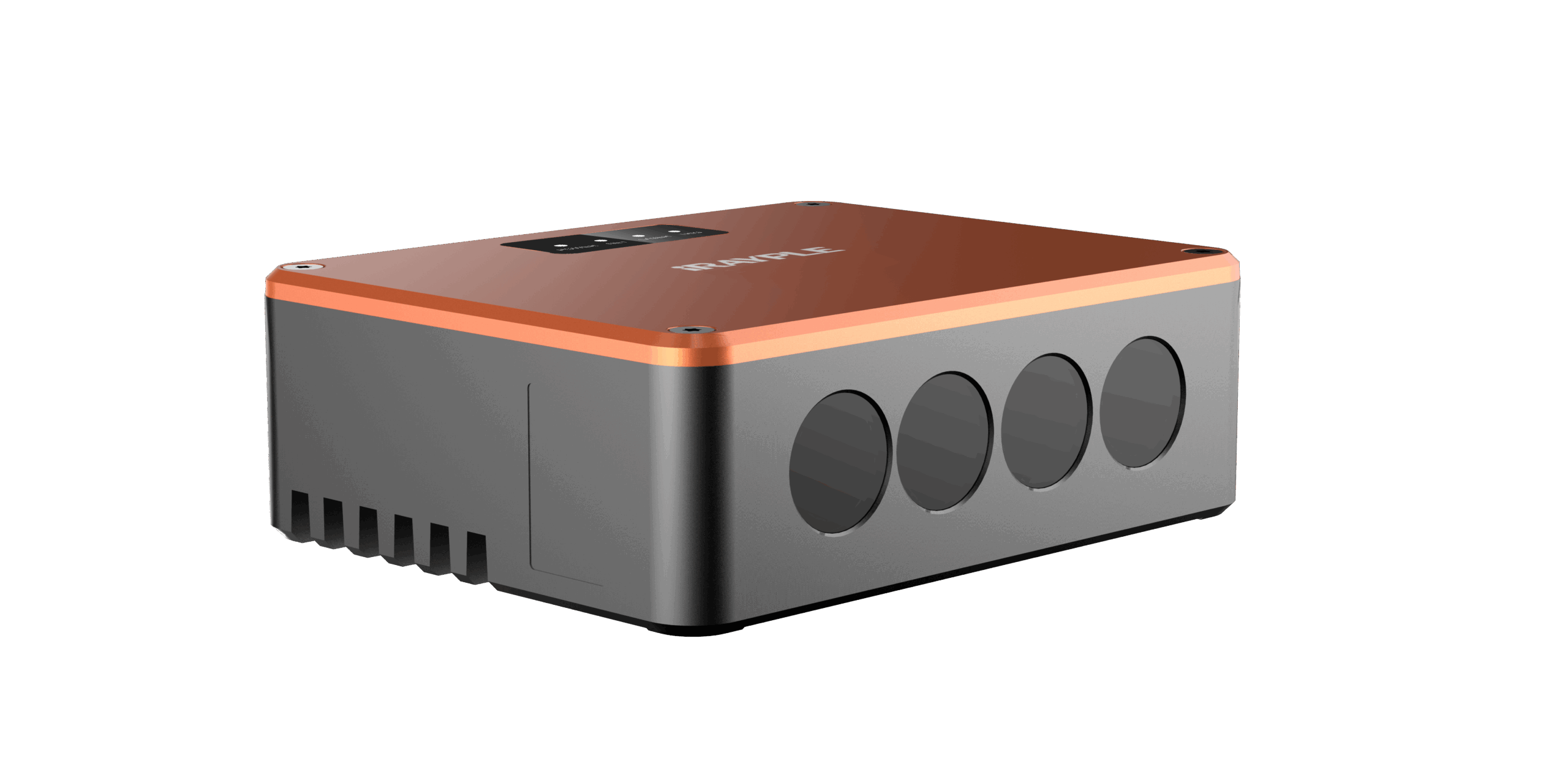

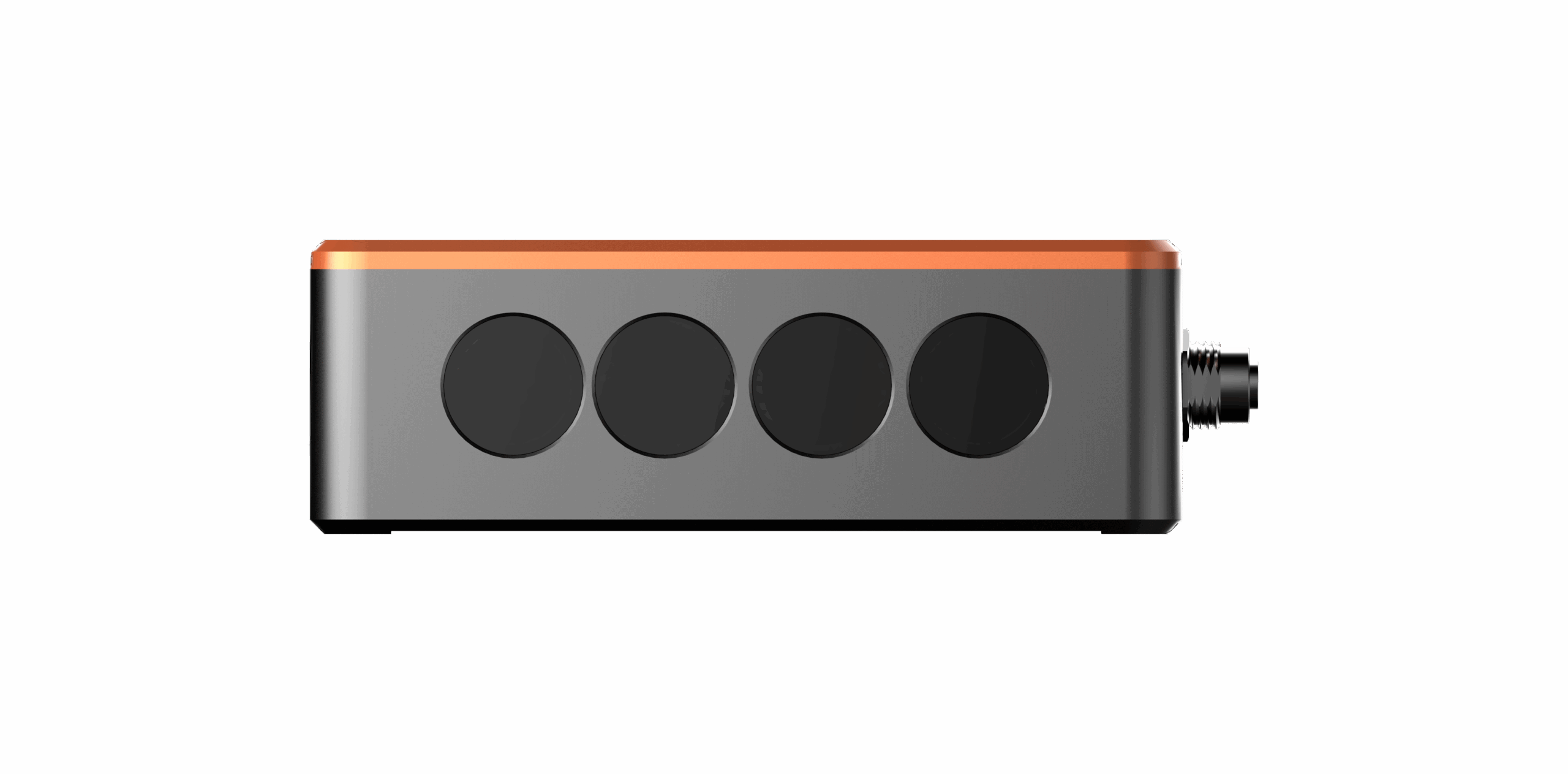

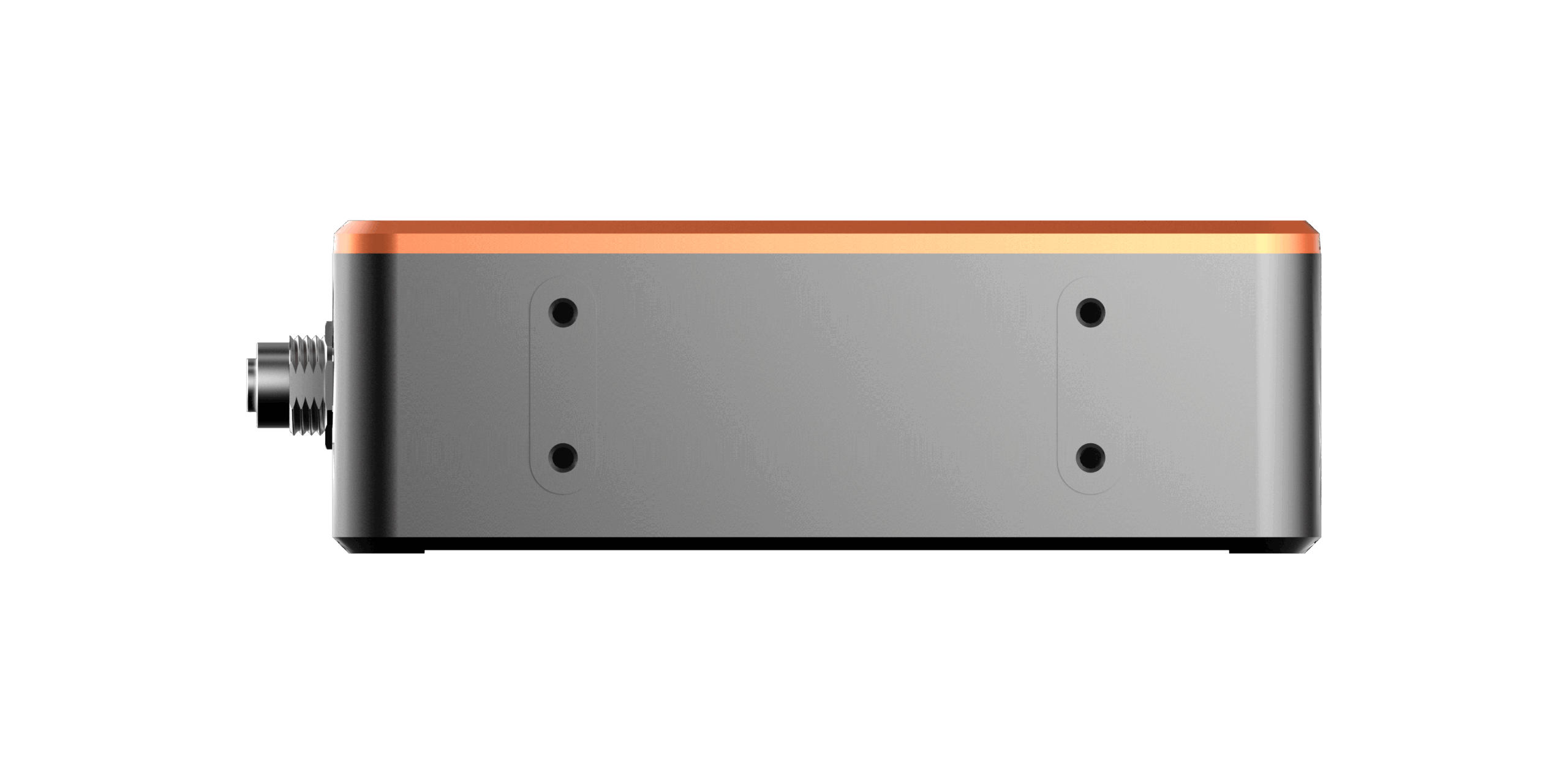

DS5131MG30CE

Series	5000 Series
Resolution	Mono?1280 x 1024?Color?1280 x 1024
Max. Frame rate	40
Sensor Type	Mono?1/2.7″CMOS?Color?1/2.7″CMOS
Shutter Mode	Global
Pixel Size	Mono?4.0?m x 4.0?m?Color?4.0?m x 4.0?m
Mono/Color	Mono&Color
Lens Mount	M12
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
Software	SCV
Certifications	CE?FCC
Function	Volume measurement?Positioning guide
Near FoV	680 mm x 620 mm
Far FoV	4000 mm x 3200 mm
Working Distance	600 mm-3500 mm
Z-axis Accuracy	1m@+/-2mm
Data Type	Color map, depth map, points cloud, dimension;
Light Source Type	Illuminator module
Laser Grade	class3

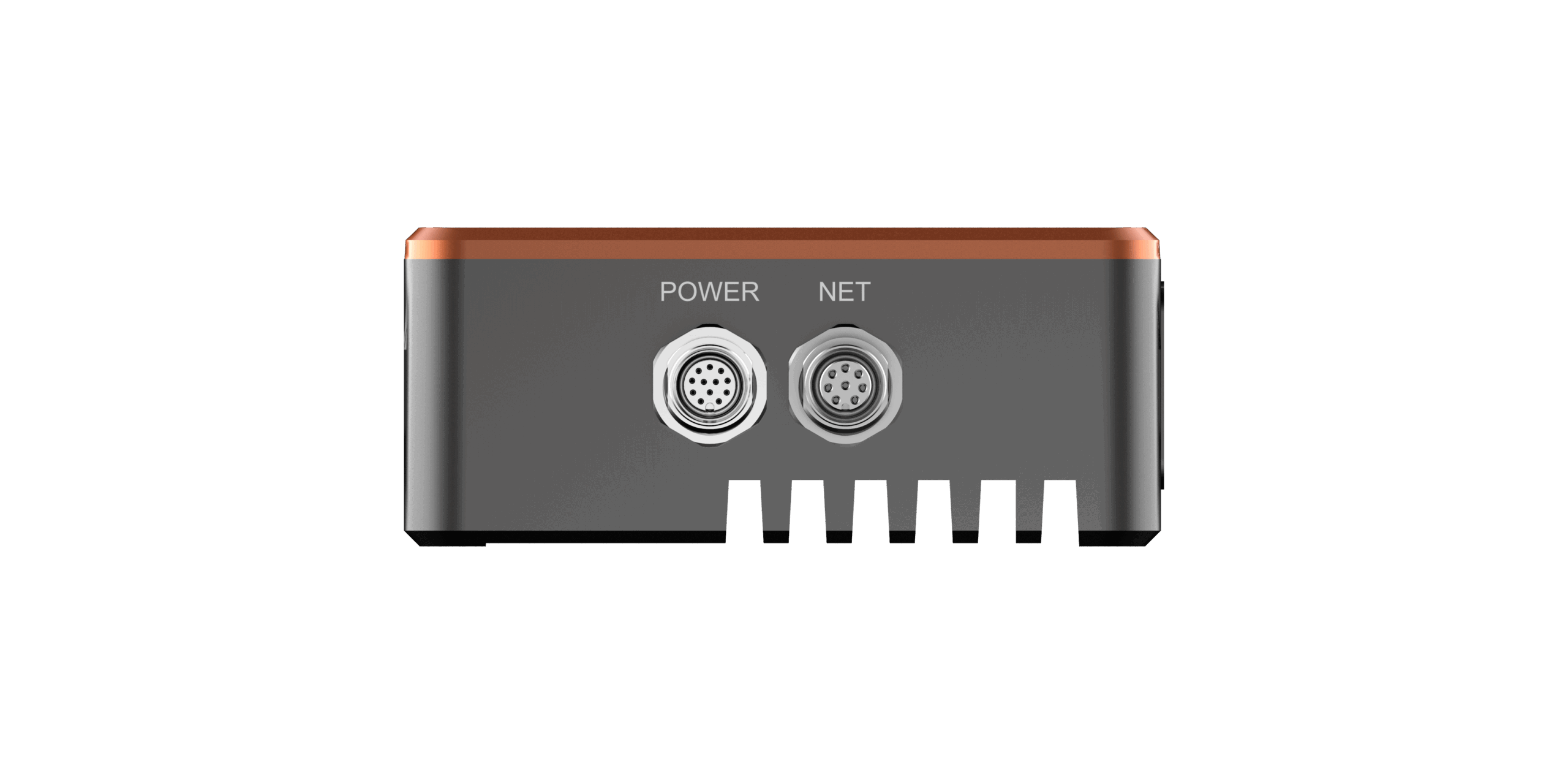

Connector	2 industrial-grade connector supports Ethernet and GPIO
Network Port	Code-A, GigE Ethernet
GPIO Interface	2 isolated input
Communication Mode	Ethernet?RS232
Communication protocol	SDK?Serial?TCPServer?TCPClient?UDP?Profinet
LED Indicator	Power ethernet, network, trigger, laser
Power Supply	Support DC12V-24V wide-range power supply, suitable for DC12V/24V voltage environment;
Power Consumption	?10.0 W
Product Dimensions	150 mmx120 mmx50.5 mm(Not including connector height)
Packaging Dimensions	367 mm x 255 mm x 144 mm
Net Weight	< 1000 g
Gross Weight	< 2500 g
Protection	IP65
Casing Material	Aluminium alloy
Operating Temperature	-20?-+50?
Operating Humidity	20%-95%, condensation
Storage Temperature	-30?-+80?

Категория: 3D/ToF Етикет: Irayple Марка: Irayple

Описание

Built-in algorithm supports high-precision volume measurement and 3D object location
Small dimension and high integration make better cost performance and smaller
installation space
Speckle-module illumination makes light uniform and reliable
Excellent filter design depressed light from environment

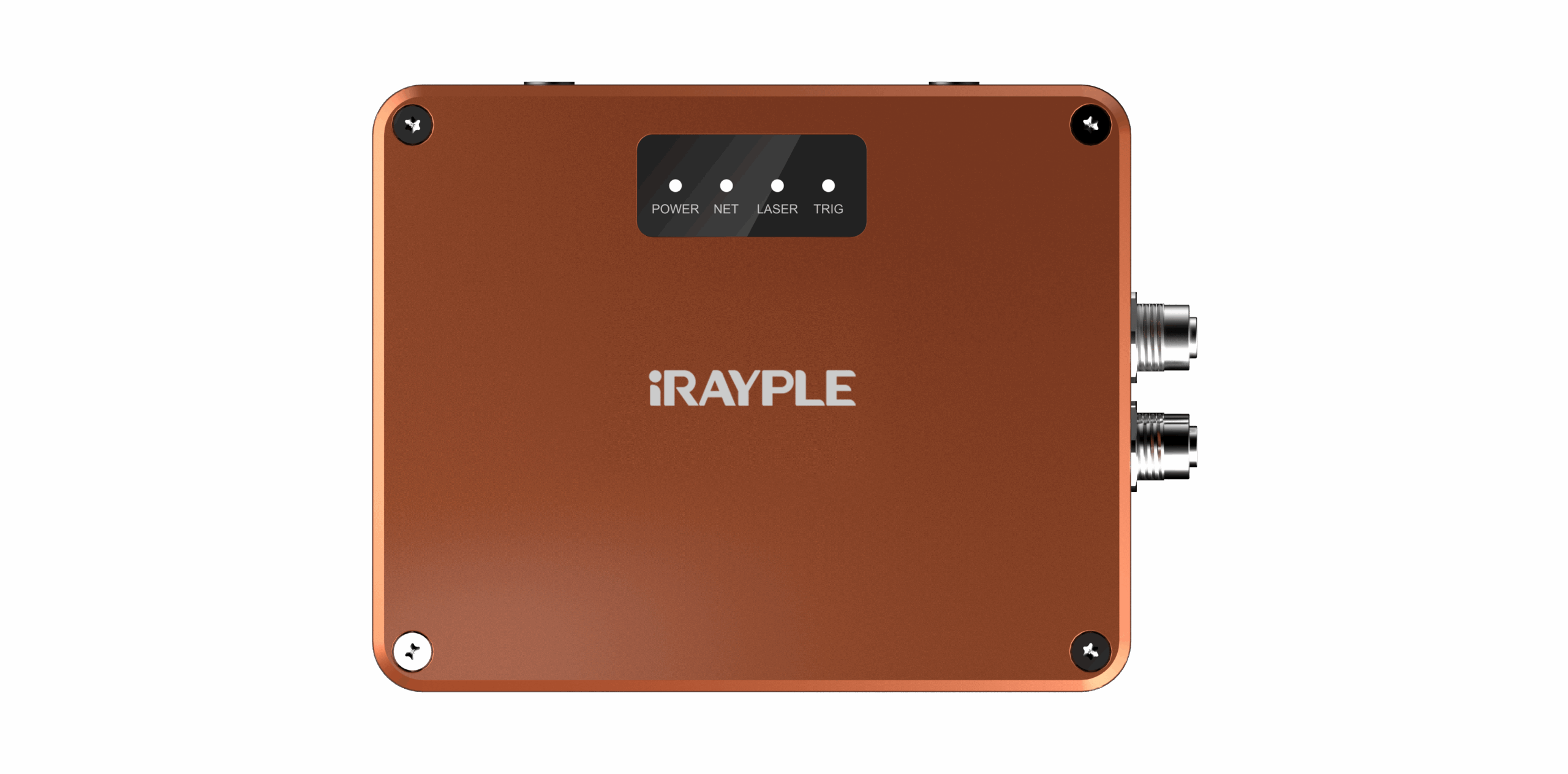

4 indicators are used to debug and function display
Industrial-grade M12 connector, IP65 protection level
Support multi-cameras cascade

Connector	2 industrial-grade connector supports Ethernet and GPIO
Gpio interface	2 isolated input
Lens mount	M12
Pixel size	Mono：4.0um x 4.0um；Color：4.0um x 4.0um
Power consumption	＜10.0 W
Power supply	Support DC12V-24V wide-range power supply, suitable for DC12V/24V voltage environment;
Resolution	Mono：1280 x 1024；Color：1280 x 1024
Sensor type	Mono：1/2.7"CMOS；Color：1/2.7"CMOS
Storage temperature	-30℃-+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
Working distance	600 mm-3500 mm
Mono-color	Mono&Color
Max. frame rate	40
Shutter mode	Global
Software	SCV
Certifications	CE，FCC
Function	Volume measurement，Positioning guide
Light source type	Illuminator module
Network port	Code-A, GigE Ethernet
Communication mode	Ethernet、RS232
Communication protocol	SDK，Serial，TCPServer，TCPClient，UDP，Profinet
Led indicator	Power ethernet, network, trigger, laser
Protection	IP65
Casing material	Aluminium alloy
Operating humidity	20%-95%, condensation
Near fov	680 mm x 620 mm
Far fov	4000 mm x 3200 mm
Z axis accuracy	1m@+/-2mm
Data type	Color map, depth map, points cloud, dimension;
Laser grade	class3
Packaging dimensions	367 mm x 255 mm x 144 mm
Gross weight	< 2500 g
