Machine vision in focus
| Image Sensor | CMOS |
| Shutter | Global |
| Resolution | 2448 x 2048 |
| Frame Rate | 164fps |
| Bit Depth | 10bit |
| Mono/Color | Color |
| Pixel Size | 3.4 ?m x 3.4 ?m |
| S/N Ratio | 39.5dB |
| Dynamic Range | 67.9dB |
| Image Format | Bayer RG8/10/12;Bayer GB 8/10/12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | 1~32 |
| Exposure Time | 1?s~15s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| user Setting | Support two sets of user-defined configurations |
| Port | CXP-12 |

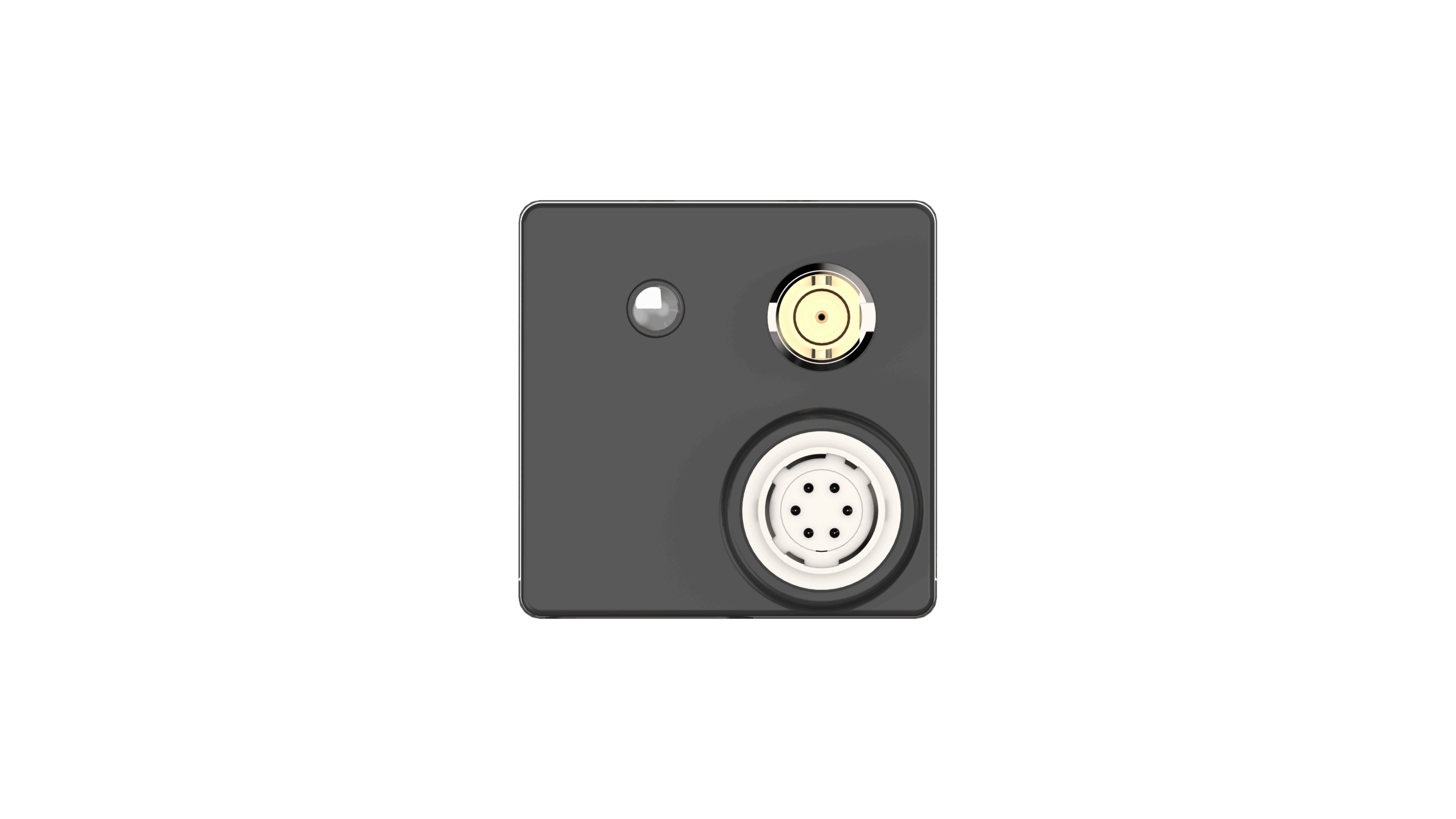

| GPIO Interface | 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |
| Lens Mount | C-mount |
| Power Supply | DC 9-24V power supply via 6-pin Hirose interface?support PoCXP |
| Power Consumption | 3.9W @12 VDC |
| Product Dimensions | 29 mm x 29 mm x 42 mm (Non including rear case connector) |
| Net Weight | 103g |
| Storage Temperature | -30?~+80? |
| Operating Temperature | -30?~+50? |
| Bit depth | 10bit |
|---|---|
| Dynamic range | 67.9dB |
| Exposure time | 1us~15s |
| Frame rate | 164fps |
| Gain | 1~32 |
| Gpio interface | 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |
| Image format | Bayer RG8/10/12;Bayer GB 8/10/12 |
| Image sensor | CMOS |
| Lens mount | C-mount |
| Pixel size | 3.4 um x 3.4 um |
| Port | CXP-12 |
| Power consumption | 3.9W @12 VDC |
| Power supply | DC 9-24V power supply via 6-pin Hirose interface，support PoCXP |
| Resolution | 2448 x 2048 |
| Roi | Support |
| Shutter | Global |
| Storage temperature | -30℃~+80℃ |
| Trigger mode | Software Trigger/Hardware Trigger/Free Run Mode |
| User setting | Support two sets of user-defined configurations |
| X flip | Support |
| Y flip | Support |
| Mono-color | Color |
| S/n ratio | 39.5dB |
