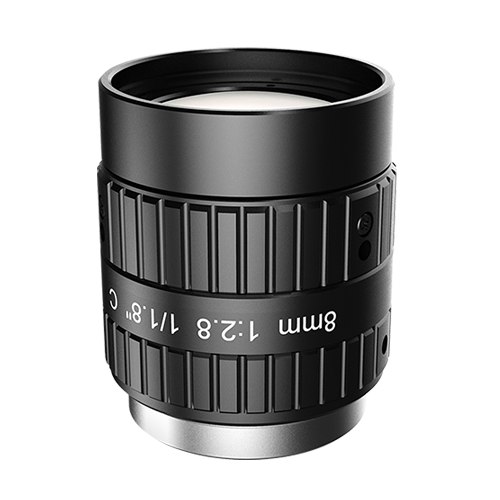

A9-0828-6MPE

A9-0828-6MPE

Series A9-6MP Series
Model A9-0828-6MPE
Focal Length 8 mm
Aperture F2.8 – 16
Image Sensor Size ?9.4 mm(1/1.8″)
Focus Range 0.1 m to infinite
Optical Distortion -0.28%
TV Distortion -0.15%
Field of View 58.94°x50.36°x34.81° (9 mmx7.4 mmx4.9 mm)
Relative Illumination 80% (F2.8); 90% (F4.0)
CRA?Chief Ray Angle) 8°
Spectral Range 436 nm~656 nm
Spectral Transmission T?85%
Camera Mount C – Mount
Filter Thread M27xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 30.78x?30 mm
Net Weight 48+/-5 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Категория: Етикет: Марка:

Описание

  • Support up to 1/1.8″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 6MP camera in full of view?high edge definition?
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Ultra low distorion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Допълнителна информация

Focus control

Manual
Field of view

58.94°x50.36°x34.81° (9 mmx7.4 mmx4.9 mm)
Cra (chief ray angle)

8°
